How to: High Mounted Stop Lamp (3rd brake light) LED Flash Module Install

utmeep

Not Active
Staff Member
Messages
428
Likes
334
Location
USA
#1
DISCLAIMER: You attempt this mod at your own risk. I nor "kiatelluride.org" are responsible for any issues/problems/injuries/death you may encounter.

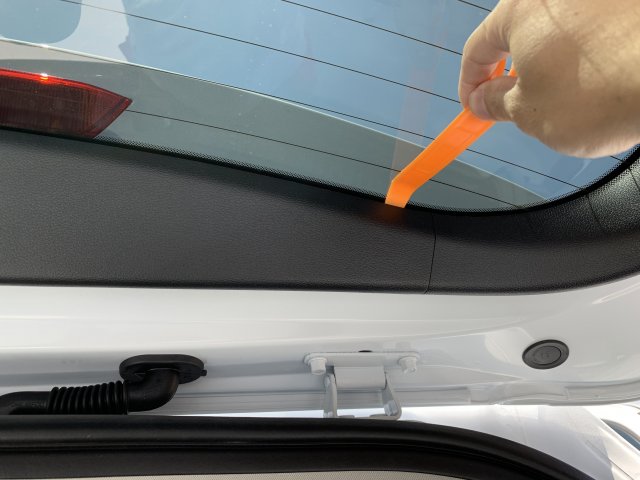

  • Remove the interior top trim of your hatch using a pry tool or with your fingers.
    • 6A51BC09-6C4A-4F41-AF29-981D38AEB7D8.jpeg

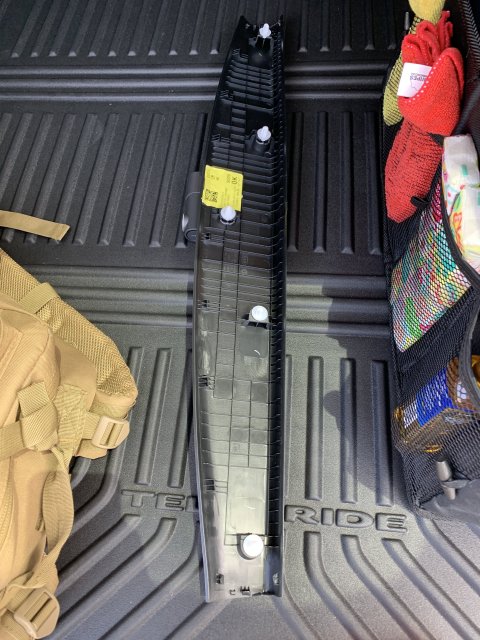

  • How the trim looks when pulled off.
    • AEEE4B66-9198-4DCF-8B2B-FF3A7445279F.jpeg

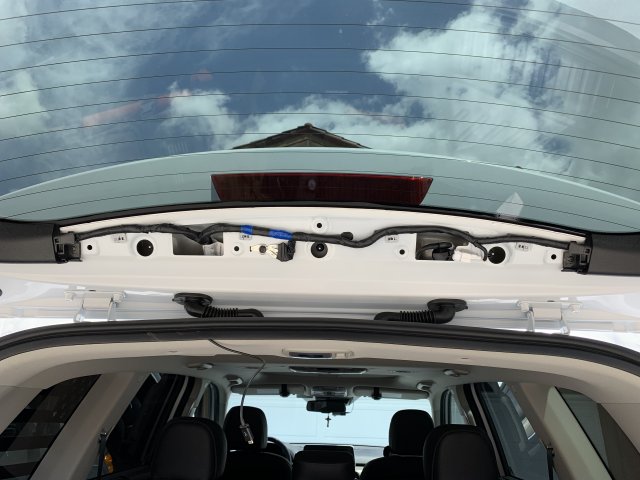

  • How the hatch looks when the trim is pulled off.
    • BBB79D0D-A1D2-498F-9881-EE53C9819568.jpeg

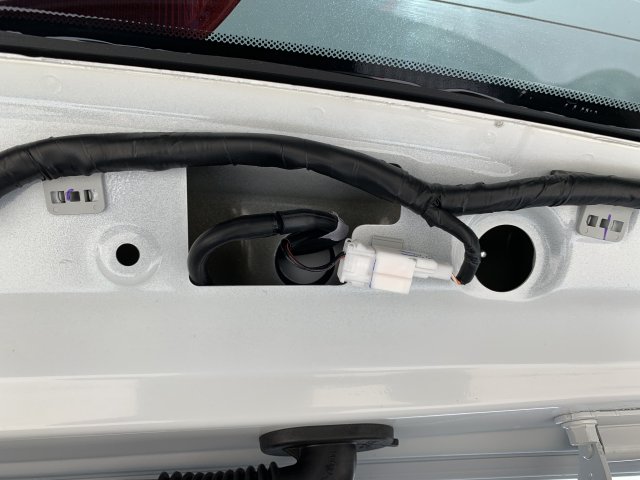

  • On the right side you'll find the connector for the 3rd brake light.
    • 7A4B98F5-6129-4B1D-BEE8-A0E1DE0C6198.jpeg

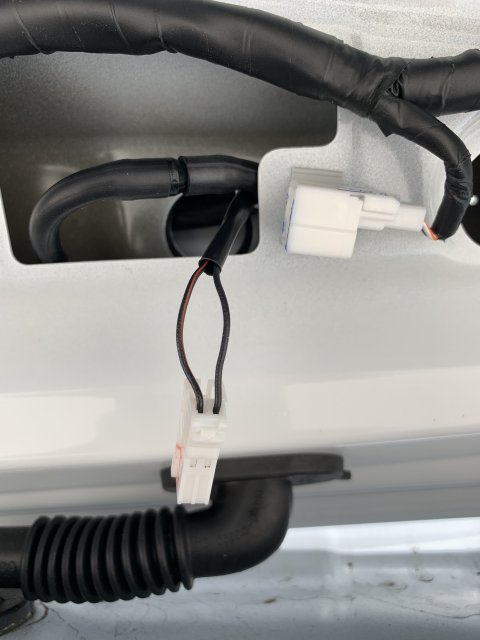

  • Unplug it and you'll have 2 wires (Black/Red is Positive and Black is Ground)
    • 97D46B4E-D831-45F6-8971-8D92043A7065.jpeg

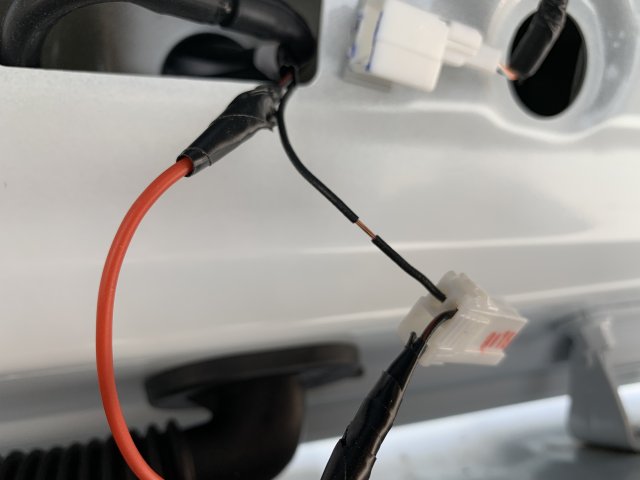

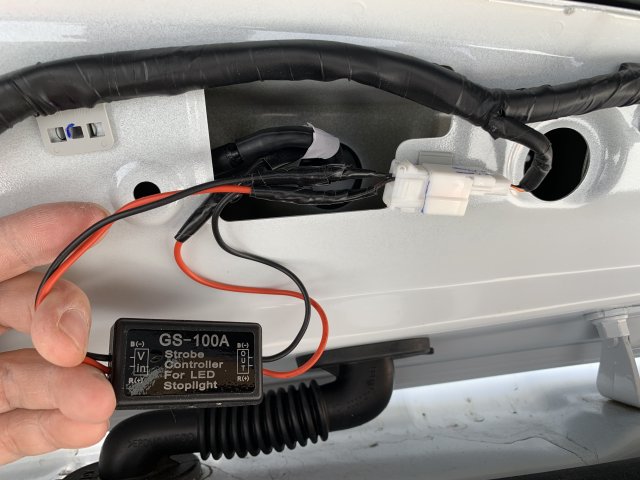

  • Cut the positive wire and solder on the wires according to the instructions. (Some modules are one direction) Split the negative and solder on both ends of the negative wires.

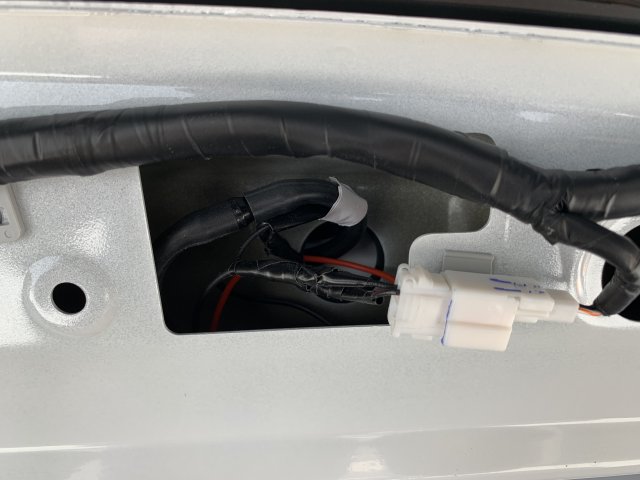

    • 091D763F-30D9-4D44-AD0B-3F1F7D982183.jpeg
    • 3CE0E15E-B657-4112-A903-2056A9CC0A3C.jpeg
  • Tuck it in the hole and put the trim back on and your done!
