LX, S, EX Headlight adjustment screw location

utmeep

MOODerator
Staff Member
Messages
428
Likes
308
Location
Shitty California
#1
I was a little confused at first as I was trying to adjust the headlights at night as anyone else would. What I should have done first was look at the headlight assembly during the day to identify the adjustment screwd...

Vertical adjustment screw circled in green behind a metal tab.

Closer look at the vertical adjustment screw.

Metal tab that covers the adjustment screw.

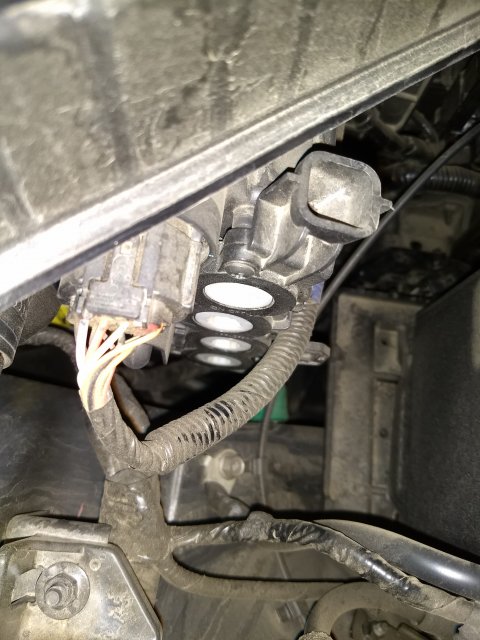

This is what you see when you look down the hole for horizontal adjustment. It doesn't look like it's easily adjustable.


Jerrick

New Member
Messages
6
Likes
1
Location
New York, NY, USA
#4
Question is how do you actually adjust them? Is there a tool or method for adjusting the verical orientation. Coul dstand to lower the beam slightly with the Sealight LED's i have in. Great pattern,, just needs to be adjusted down slightly. Being an S, donthave fogs.

OP
utmeep

utmeep

MOODerator
Staff Member
Messages
428
Likes
308
Location
Shitty California
Thread Starter #5
Question is how do you actually adjust them? Is there a tool or method for adjusting the verical orientation. Coul dstand to lower the beam slightly with the Sealight LED's i have in. Great pattern,, just needs to be adjusted down slightly. Being an S, donthave fogs.
Philips screw driver. Clock wise to go up counter to go down. You can also youtube how to adjust headlights. 90% of how to adjust headlights are the same.

Messages
2
Likes
0
Location
Racine, WI, USA
#6
I was a little confused at first as I was trying to adjust the headlights at night as anyone else would. What I should have done first was look at the headlight assembly during the day to identify the adjustment screwd...

Vertical adjustment screw circled in green behind a metal tab.
View attachment 140

Closer look at the vertical adjustment screw.
View attachment 141

Metal tab that covers the adjustment screw.
View attachment 142

This is what you see when you look down the hole for horizontal adjustment. It doesn't look like it's easily adjustable.
View attachment 143
In your second image the bolt head below the plate is your height adjustment, I’ve just lowered my right side light on my EX and that is what I used.

OP
utmeep

utmeep

MOODerator
Staff Member
Messages
428
Likes
308
Location
Shitty California
Thread Starter #7
In your second image the bolt head below the plate is your height adjustment, I’ve just lowered my right side light on my EX and that is what I used.
Exactly why the caption above it says vertical adjustment... LoL

OP
utmeep

utmeep

MOODerator
Staff Member
Messages
428
Likes
308
Location
Shitty California
Thread Starter #9

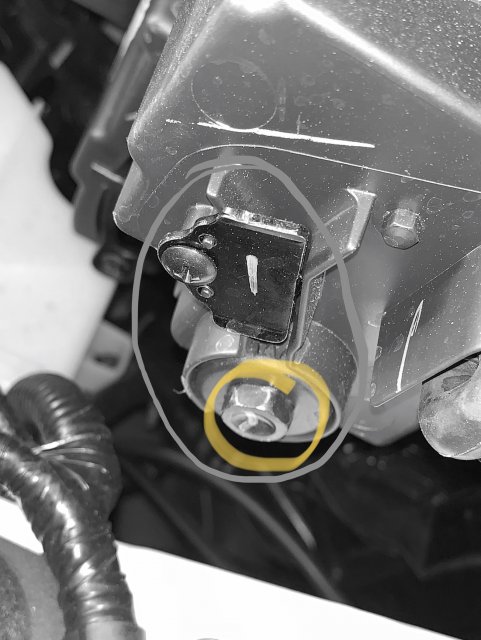

Sorry, what meant was that this is your adjustment (circled in yellow) nothing to do with the Philips cover port.
Image 2 is a reference image.. Showing you to look for the metal tab to find the adjustment screw hole...


Rsumo

New Member
Messages
1
Likes
2
Location
Fresno, CA, USA
#10
I have an sx and people were flashing me at least 3-5 times a week. Not a mechanic but decided to turn the top white knob behind the headlights. Seemed to work. Clockwise was to lower, counter clockwise was to raise. Used star T-60. I did not turn the other knobs. There are four knobs in total and I only turned the top which worked.


Attachments

m1match

New Member
Messages
2
Likes
1
Location
San Diego, CA, USA
#11
My Telluride SX headlights were way too high and people were flashing their lights at me all the time. I took Rsumo's advice and bought a T60 torx socket. Just like he said, turning the top torx adjustment clockwise brings the headlight beam down.

Messages
26
Likes
17
Location
Chicago, IL, USA
#12
My Telluride SX headlights were way too high and people were flashing their lights at me all the time. I took Rsumo's advice and bought a T60 torx socket. Just like he said, turning the top torx adjustment clockwise brings the headlight beam down.
Great! How many turns did you go by chance? Did you match both sides? Thanks.


m1match

New Member
Messages
2
Likes
1
Location
San Diego, CA, USA
#13
I first parked my Mercedes GLC 300 about 30 feet from the garage cabinets and put tape at the headlight cutoff line. Then I parked my Telluride in the same place and adjusted the headlight cutoff for the right and left lights to the same place as the Mercedes. On my garage cabinet I moved the cutoff line down about 6 inches which took less than one turn of the torx nut

Messages
2
Likes
1
Location
Waukesha, WI, USA
#14
Can anyone help me with providing or explaining how I go about changing out my HID to LED headlights? I have the bulbs just have no clue how to start and what to do. I hear it’s easy...but feel dumb I don’t know where to begin to get to where the bulb is to replace. Any guidance is appreciate.
